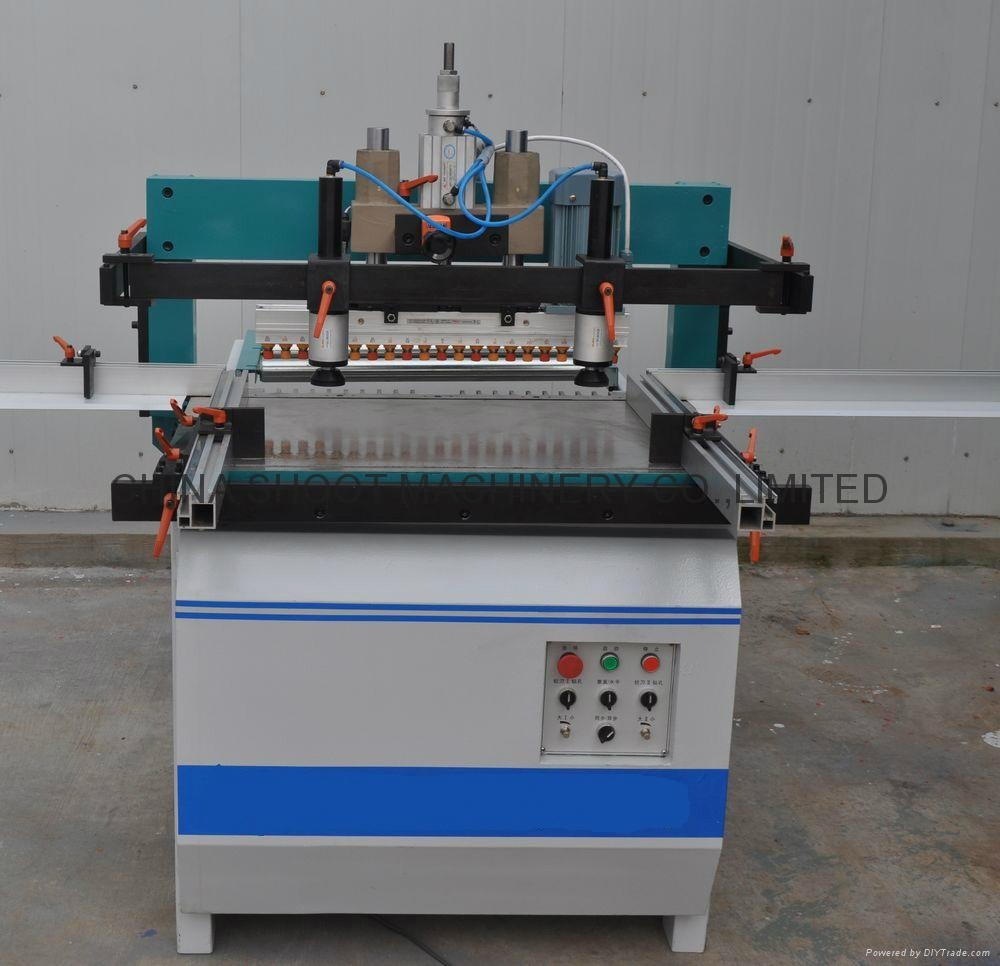

| Heavy Duty Single Row Multi-Boring Machine,SH-7121N |
|
|
| Model No.︰ | SH-7121N |
| Brand Name︰ | SHOOT |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | 1 pic |
|
|
|
|
|
| This product is suitable for use in mortising of solid wood, flakeboard, medium density fiberboard, etc. This machine has such advantages as high production efficiency, easy operation, processed precision, etc., and drill holes in the vertical and horizontal faces of the plates at the same time. This machine is the indispensable equipment for carpentry production industry. |
| Heavy Duty Single Row Multi-boring Machine |
| Model |
SH-7121N |
| Max. drilling depth |
60mm |
| Distance between spindles |
32mm |
| Drill set inner hole |
10mm |
| High of working table to surface |
900mm |
| Vertical Max. travel |
300mm |
| Horizontal Max. travel (optional: vertical or horizontal) |
110mm |
| Two rows max. travel |
430mm |
| Max. working thickness |
70mm |
| Spindle numbers |
1 x 21 |
| Single motor power |
1.5kw |
| Total power |
1.5kw |
| Revolution speed of spindle |
2840rpm |
| Compressed air work pressure |
0.5--0.8MPa |
| N.W./G.W. |
400kgs/450kgs |
| Overall size |
1900 x 2600 x 1600mm |
|
|
|
|
| Export Markets︰ | Asia,Middle-east,africa,Europe |
| Payment Details︰ | T/T,L/C at sight |
| Ship Date︰ | 30days |
| Standard Met︰ | CE |
|
|
