Woodworking Band Saw,MJ3448(18")

Model No.︰MJ3448(18")
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 24 Related Items

Product Description

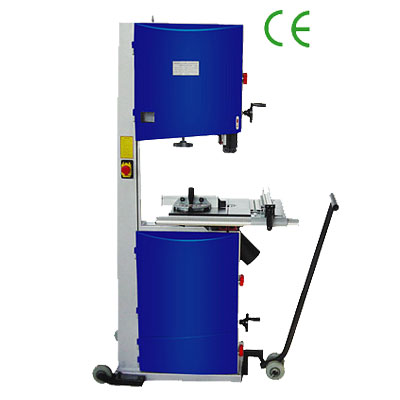

18" Band Saw Machine
Model MJ3448
Motor power 3HP
Saw wheel diameter 470mm
Table pivot capacity .-10 degree--45 degree
Processing scope        Max. height 280mm
                                  Max. width 465mm
Line speed of saw blade(50Hz) 14;7m/s
Line speed of saw blade(60Hz) 16.8;8.4m/s
Blade size(LxW) 3607x12.5--38.1mm
Blade teeth per inch 4Th
Table size 630x485mm
Dust extraction outlet 100mm
Packing: in carton
G.W./N.W. 180/162kg
Packing size 826x545x2070mm
Quantity per 20'/40' container 28/56sets

woodworking band saws,wood working bandsaws tire fence sawmill horizontal,woodworking ,dustrial tools,wood cutting bandsaw,portable vertical bandsaw mill blade box inca ,bench band saws,woodworking machines,carpentry machinery tools machines equipments,carpenter  power tool machine ,band power saw tool wood machine ,

A power saw used in woodworking, consisting essentially of a toothed metal band coupled to and continuously driven around the circumferences of two wheels.

An endless cutting tool consisting of a toothed metal belt that is driven around two wheels

Band saws range in throat capacity from 8" to 36", with either two or three wheels for the blade. Blades for the home shop range from 1/8" to 1" wide, the narrow blades are used to cut small radius curves, the wide blades are used for straight cuts such as resawing.

A good quality band saw properly set up it will become one of the most used tools in your shop. Choose at least a 14" model if you plan to do much resawing, the smaller models are a bit too light.

Most would choose a band saw over a table saw if only one of them could be had, they are so much more versatile. Cutting dados is not possible on a band saw but they can be done on a router.

The only downside is that they require more set up than any other tool in the shop, different operations require different blades, each time a blade is changed the saw has to be tuned to that particular blade. Many shops eventually end up with a large machine for heavy work and a smaller machine with a narrower blade for fine work


Export Markets︰Europe,Asia,America,Africa, Middle-East
Payment Details︰T/T,L/C at sight
Ship Date︰30 days
Standard Met︰CE
