Automatic Solid Wood Strip Edge Banding Machine,SHSM6055

  • Automatic Solid Wood Strip Edge Banding Machine,SHSM6055
  • Automatic Solid Wood Strip Edge Banding Machine,SHSM6055
  • Automatic Solid Wood Strip Edge Banding Machine,SHSM6055
Model No.︰SHSM6055
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰US $ 6800 / pic
Minimum Order︰1 pic
Share on:

 Total 48 Related Items
Prev3334353637Next

Product Description
YANTAI SHOOT WOODWORKING MACHINE CO.,LTD
E-mail: qujun@shootmachine.com,shootmachine@gmail.com
Website: www.shootmachine.com
Tel:  +86 535 8949911,   4222377
Fax: +86 535 8949911,   4314888
Wechat/Whatsapp/Viber: +86 13906451612,  Skype ID: ytmptrade,   QQ: 1592903460

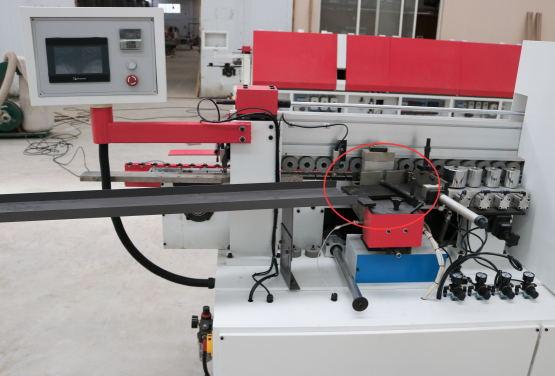

Automatic Solid Wood Strip Edge Banding Machine
Feature:
Main functions: gluing, edge sealing, end trimming (1.1kw high frequency motor), rough trimming (1.1kw high frequency motor), rough trimming (1.1kw high frequency motor)
Slotted (5.5kw motor)
The solid wood strip edge banding machine is a multi-functional automatic edge banding machine with excellent mechanical structure, the machine has higher stability and easier operation.
HD PLC touch display makes machine control easier and more convenient.
Gluing press device, can be used for 30cm width workpiece
The end trimming device moves through the precise linear guide rail, adopts the automatic tracking of the master model and the rapid cutting of the high-frequency high-speed motor to ensure the smoothness of the cut surface.
The roughing device x2 is used to repair the excess edge sealing material on the upper and lower parts of the plate, and adopts the automatic tracking of the master and the high-frequency high-speed motor structure to ensure the smoothness of the upper and lower parts of the plate during trimming.
The debugging of the machine can be done by adjusting the indicator number of the counter, so that the debugging is more uniform and simple, which greatly saves the machine adjustment time; the 5.5kw slotting device makes the slotting function more powerful.
Model SHSM6055
Edge banding tape thickness 0.3-30mm
Edge banding tape width 10-60mm
Panel thickness 10-55mm
Min. Panel width 80mm
Min. Panel length 120mm
Panel feeding speed 8-20m/min
Total power 23kw
End trimming motor 1.1kw high frequency
Motor speed 12000rmp
Rough trimming motor-1 1.1kw high frequency
Motor speed 12000rmp
Rough trimming motor-2 1.1kw high frequency
Motor speed 12000rmp
Slotting Motor 5.5kw
Air pressure 0.6Mpa
Machine size 5500*900*1600mm
Machine weight 1500kg
Export Markets︰Europe,Asia,American,Middle-East,Africa
Payment Details︰T/T,L/C at sight, D/P, Western Union
Ship Date︰20days after receiving deposit
Standard Met︰CE

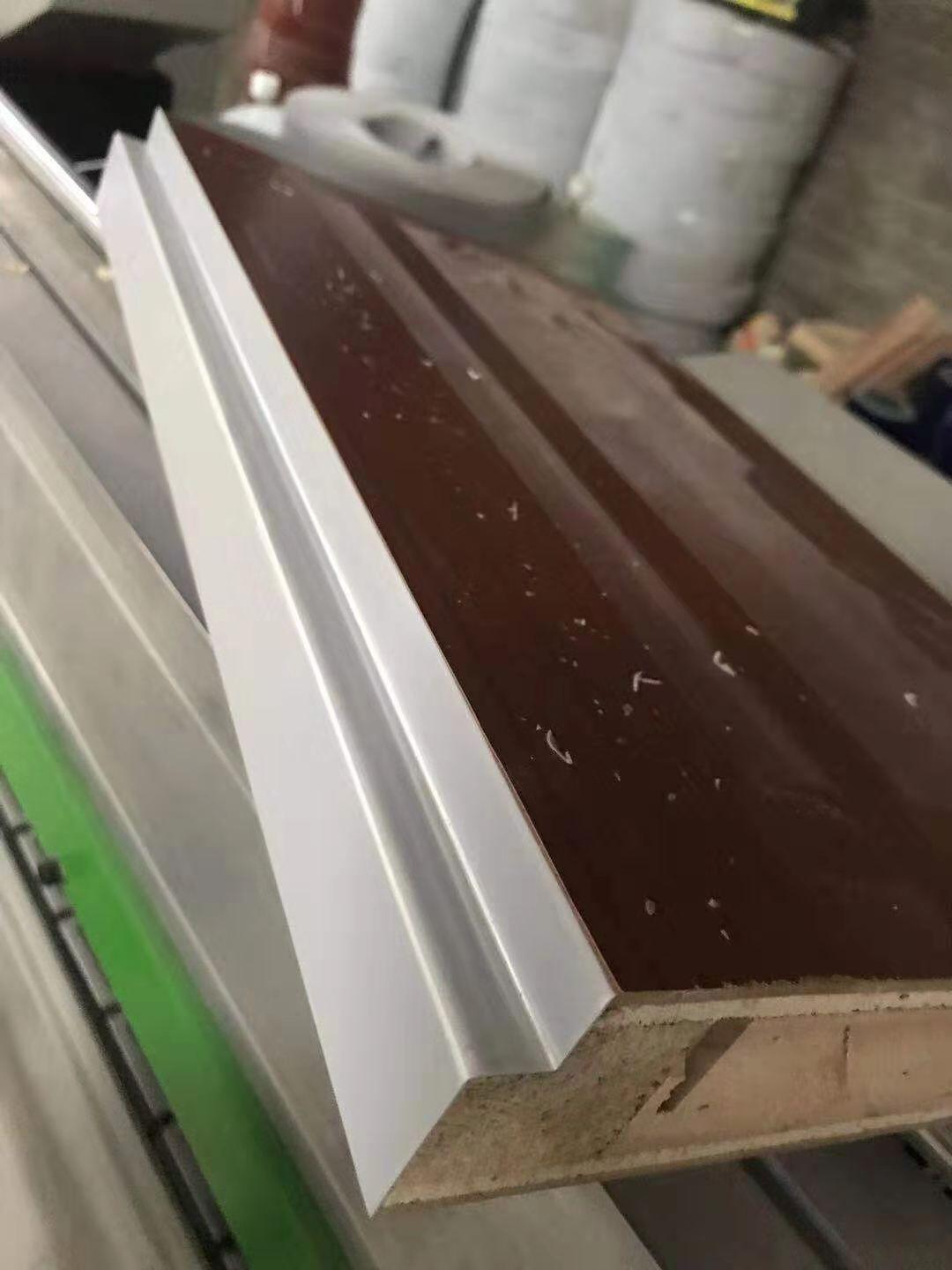

Product Image
