Product Catalog > Combine Woodworking Machine

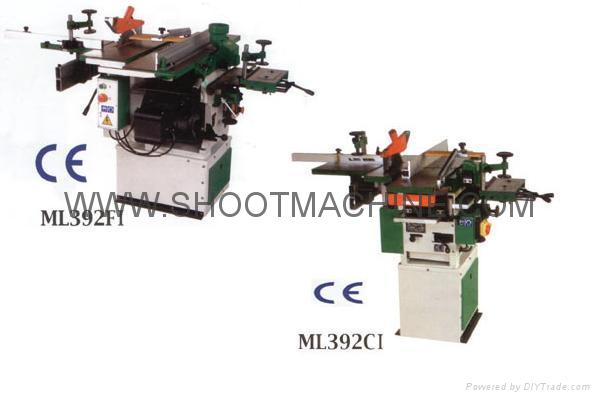

woodworking machine,ML392CI,ML392FI
woodworking machine,ML392CI,ML392FI
woodworking machine,ML392CI,ML392FI
woodworking machine,ML392CI,ML392FI
woodworking machine,ML392CI,ML392FI
Model No.︰ML392CI,ML392FI
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰-
Minimum Order︰-

 Total 36 Related Items
Prev2021222324Next
Auto next page:   SecondsPlay

Product Description
Combine Woodworking Machine 　
Model ML392CI
　 　
Surface planer 　
Arbor dia. 72mm
Arbor speed 3500r/min
Max. planing width 200mm
Max. removal 3mm
Length of surface table 850mm
　 　
Thickness Planer 　
Max.planing width 250mm
Range of thickness 6-90mm
Min.thickness length 150mm
Feeding speed 6.5m/min
　 　
Saw 　
Blade dia. 250mm
Max. cutting depth 70mm
Arbor speed 3500r/min
Max. cross cutting width 270mm
　 　
Milling & Drilling 　
Arbor dia. 20mm
Milling tool dia. 72x40x20mm
Max.milling width 40mm
Max.drilling dia. 12mm
　 　
Others 　
Motor power 1.5kw(220V/50HZ,380V/50HZ)
N.W./G.W. 135KG/175KG
Packing size 1120X710X570mm





Combine Woodworking Machine 　
Model ML392FI
　 　
Surface planer 　
Arbor dia. 72mm
Arbor speed 4000r/min
Knives specification 260x30x3mm
Max. planing width 250mm
Total length of table 960mm
Max. removal 3mm
Max.planing width 250mm
Inclin.of surfacing guide 0--45degree
　 　
Thickness Planer 　
Max.planing width 250mm
Range of thickness 6-120mm
Min.thickness length 150mm
Feeding speed 6.5m/min
　 　
Saw 　
Blade dia. 250x30x3.2mm
Max. cutting depth 70mm
Arbor speed 3500r/min
Max. cross cutting width 300mm
Indexing ruler angle .+/-45degree
　 　
Milling & Drilling 　
Milling cutter dia. 70--104mm
Milling thickness 6--60mm
Max.milling width 40mm
Mill arbor 20mm
Max. drilling dia. 12mm
Max.drilling depth 90mm
　 　
Others 　
Motor power 1.5/2.2kw/(220V/50HZ,380V/50HZ)
N.W./G.W. 200/230kg
Packing size 1130x800x700mm


Export Markets︰Asia,Europe,American,Middle-East
Payment Details︰T/T,L/C at sight
Ship Date︰ 30 days
Standard Met︰CE
