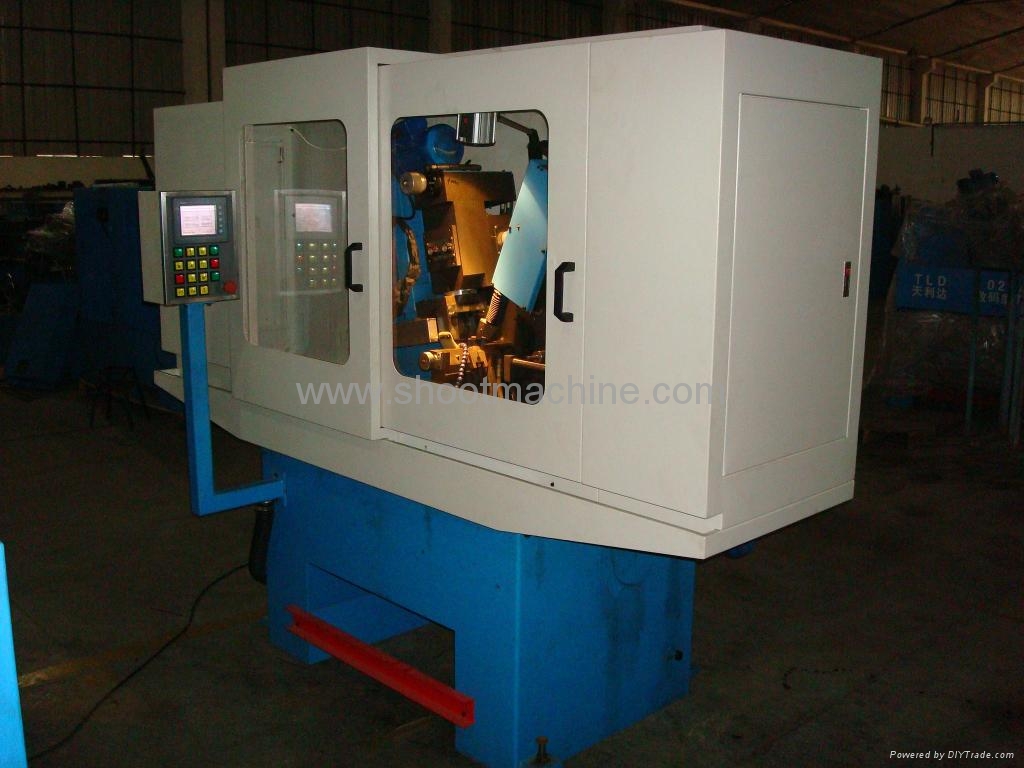

| CNC automatic grinding machine, SH-NC10-A1 |
|
|
| Model No.︰ | SH-NC10-A1 |
| Brand Name︰ | SHOOT |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | - |
|
|
|
|
|
| Feature: |
| 1. touch screen and keyboard control |
| 2. self-detect and PLC control system |
| 3. centre lubricant system |
| 4. grind the tooth-shape and chamfer at the same time |
| 5. saw grinding |
| 6. CNCautomatic |
| CNC automatic grinding machine |
| Model |
SH-NC10-A1 |
| Grinding outside dia. |
80-810mm |
| can order made Max. grinding outside dia. |
2000mm |
| Grinding inside dia. |
10-220mm |
| Grinding gear number |
1-999gear |
| Distance between tooth |
7-100mm |
| Saw thickness |
8mm |
| The angle of main front saw |
-20 to +40degree |
| Face-gear swing angle |
-15 to +15degree |
| The angle of back saw |
6-45degree |
| Top-gear swing angle |
-45 to +45degree |
| Saw range |
0-28mm |
| Working speed |
20gear/min. |
| Grinding wheel outside dia. |
125mm |
| Grinding wheel inside dia. |
32mm |
| Grinding wheel running speed |
4800rpm |
| Radiator set |
50kl/min. |
| Total power |
1.6kw |
| Net weight |
1060kg |
| Gross weight |
1200kg |
| Dimension |
165x135x183cm |
| Packing Size |
2690 x 1400 x 2210mm |
|
|
|
|
| Export Markets︰ | Europe,American,Middle-east |
| Payment Details︰ | T/T,L/C |
| Ship Date︰ | 30days |
|
|
