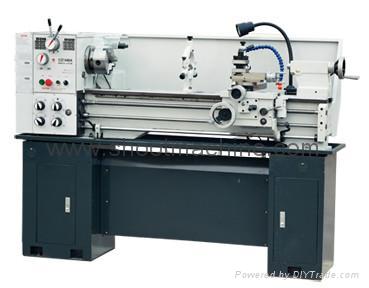

Metal Bench Lathe Machine CZ1340A CZ1440A

  •   Metal   Bench Lathe Machine	CZ1340A CZ1440A
  •   Metal   Bench Lathe Machine	CZ1340A CZ1440A
  •   Metal   Bench Lathe Machine	CZ1340A CZ1440A
Model No.︰CZ1340A
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 78 Related Items
Prev5354555657Next

Product Description
 Metal   Bench Lathe Machine
Model CZ1340A
Swing over bed φ330mm
Swing over carriage φ195mm
Swing over gap φ476mm
Width of bed-way 186mm
Distance between centers 1000mm
Taper of spindle M.T.5
Spindle diameter φ38mm
Step of speed 18
Range of speed Low step 60~1100rpm
High step 85~1500rpm
Head D1-4
Metric thread  26kinds (0.4~7mm)
Inch thread 34kinds(4~56T.P.I)
Moulder thread 16 kinds(0.35~5M.P)
Diametral thread 36 kinds(6~104D.P)
Longitudinal feeds 0.052~1.392 (0.002”~0.0548”)mm/r
Cross feed s 0.014~0.38 (0.00055”~0.015”)mm/r
Diameter lead screw  φ22(7/8”)mm
Pitch of lead screw       3mm or 8T.P.I
Saddle travel 1000mm
Cross travel 170mm
Compound travel 74mm
Barrel travel 95mm
Barrel diameter φ32mm
Taper of center M.T.3mm
Motor power 1.5(2HP)Kw
Motor for coolant system’s power 0.04(0.055HP)Kw
Machine(L×W×H) 1920×760×760mm
Stand(left) (L×W×H) 440×410×700mm
Stand (right)(L×W×H) 370×410×700mm
Machine 500/560Kg
Stand 70/75Kg
Loading amount 22pcs/20’container



 Metal   Bench Lathe Machine
Model CZ1440A
Swing over bed  φ350mm
Swing over carriage  φ215mm
Swing over gap  φ500mm
Width of bed-way 186mm
Distance between centers 1000mm
Taper of spindle  M.T.5
Spindle diameter φ38mm
Step of speed 18
Range of speed Low step 60~1100rpm
 High step 85~1500rpm
Head D1-4
Metric thread  26kinds (0.4~7mm)
Inch thread 34kinds(4~56T.P.I)
Moulder thread 16 kinds(0.35~5M.P)
Diametral thread 36 kinds(6~104D.P)
Longitudinal feeds 0.052~1.392 (0.002”~0.0548”)mm/r
Cross feed s 0.014~0.38 (0.00055”~0.015”)mm/r
Diameter lead screw  φ22(7/8”)mm
Pitch of lead screw 3mm or 8T.P.I
Saddle travel 1000mm
Cross travel 170mm
Compound travel 74mm
Barrel travel 95mm
Barrel diameter φ32mm
Taper of center M.T.3mm
Motor power 1.5(2HP)Kw
Motor for coolant system’s power 0.04(0.055HP)Kw
Machine(L×W×H) 1920×760×760mm
Stand(left) (L×W×H) 440×410×700mm
Stand (right)(L×W×H) 370×410×700mm
Machine 505/565Kg
Stand 70/75Kg
Loading amount 22pcs/20’container
Export Markets︰Europe,America,Asia,Mid-east,
Payment Details︰T/T, L/C at sight
Ship Date︰15days
