Panel Saw


Precision Sliding Table Saw
Style: MJ90-C

Sliding table length:2800mm
Main saw blade:(300-350) x 30mm
Scoring unit blade:120x22mm
Scoring unit spindle rotation:9000rpm
Scoring unit power:0.75kw(1HP)
Motor power standard:4kw(5.5HP)
Main saw rotation:3000/4000/5000/6000rpm
Net weight:800kg



Sliding Table Panel Saw(0-45degree)
Style:MJ45

Max.cutting length:3100mm
Max.cutting width:1250mm
Saw blade dia.:300mm(250-300)
Max.cutting thickness:80mm
Max.cutting thickness at 45 degree:55mm
Speed of main saw blade:4000/6000rpm
Spindle dia.:30mm
Tiling saw blade:0-45degree
Main motor:4kw
Scoring saw blade:120mm
Speed of scoring saw blade:8000r/min
Spindle of scoring saw:20mm
Motor:0.75kw
Net weight:1000kg

Precision Sliding Table Panel Saw
Style:QMJ-45

Sliding table length:3200mm
Lengthways of biggest of horizontal piece:2800x2800mm
Revoiving speed of main sawspindle:3000/6000r/min
Dia.of main saw spindle:300x300mm
Motor :0.75kw
Revoiving speed of lining-saw spindle:120x20mm
Max.cutting thickness:80mm
Max.cutting thickness at 45degree:60mm
Net weight:900kg
Overall size:3200x2700x1200mm


The J45degree rolls the adjustable angle nicety of bead to push th pedestal to saw.

Precision Sliding Table Panel Saw
Style:QMJ-90


Sliding table length:2800mm
Lengthways of biggest of horizontal piece:2500x2500mm
Revoiving speed of main sawspindle:3000/6000r/min
Dia.of main saw spindle:300x300mm
Motor :0.75kw
Revoiving speed of lining-saw spindle:120x20mm
Max.cutting thickness:80mm
Net weight:900kg
Overall size:2800x2560x1000mm





The QMJ90A rolls the bead the nicety to push the pedestal to saw

The QMJ90B rolls the bead the nicety to push the pedestal to saw

The QMJ90C rolls the empress the type push the pedestal to saw


QJ6130ZA Panel Saw

Characteristics





1.Fit for processing various consistent plates, flakeboards, veneers, PVC panel, organic glass plate and solid wood plate and the best choice for manufacture of furniture, decoration and products of plastic plate;

2.Guide rail of mobile workbench adopts ball bearing differential structure with high rating accuracy;

3.Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and nondeformable performance;

4.Surface passes treatment of oxidation, beautiful and wearable;




Dimension sliding table:3000x310mm

Cross cut capacity: 3000mm

Width of cut between saw blade and rip fence : 1250mm

Saw blade dia.:300mm(250-350)

Height of cut 300mm: 80mm

Speed of main saw blade:4500/6000rpm

Spindle diameter:30mm

Tiling saw blade:90degree

Main motor:4kw

Scoring saw blade:120mm

Speed of scoring saw blade:8000rpm

Spindle of scoring saw blade:20mm

Motor:0.75kw

Net weight:850kg

Gross weight(wooden packing case):900kg

Overall dimensions:3000x2550x900mm

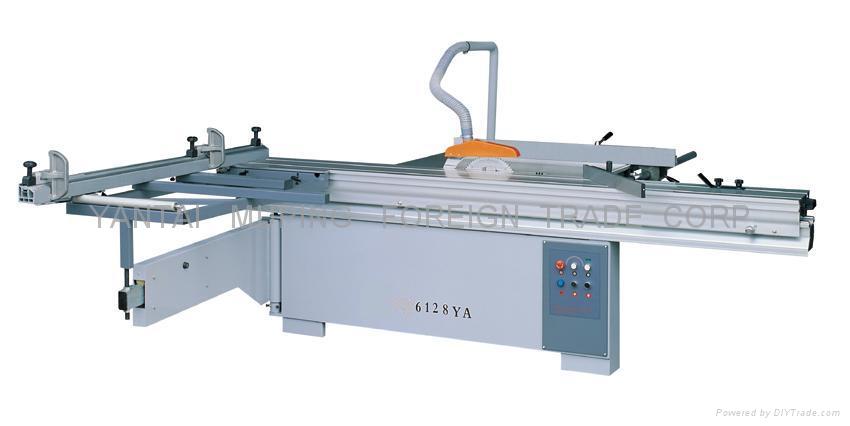

QJ6128YA Panel Saw



Characteristics



1.Fit for processing various consistent plates, flakeboards, veneers, PVC panel, organic glass plate and solid wood plate and the best choice for manufacture of furniture, decoration and products of plastic plate;



2.Guide rail of mobile workbench adopts ball bearing differential structure with high rating accuracy;



3.Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and nondeformable performance;



4.Surface passes treatment of oxidation, beautiful and wearable;





Dimension sliding table : 3000x310mm

Cross cut capacity : 3000mm

Width of cut between saw blade and rip fence :1250mm

Saw blade dia.: 300mm(250-350)

Height of cut 300mm :80mm

Speed of main saw blade :4500/6000rpm

Spindle diameter :30mm

Tiling saw blade : 90degree

Main motor :4kw

Scoring saw blade : 120mm

Speed of scoring saw blade :8000rpm

Spindle of scoring saw blade :20mm

Motor : 0.75kw

Net weight :850kg

Gross weight(wooden packing case) :900kg

Overall dimensions :3000x2550x900mm

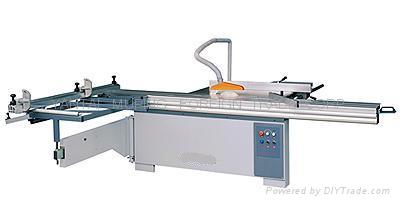

QJ6130TZ Panel Saw



Characteristics

1.Fit for processing various panel with similar rigidity, such as consistent plate, flakeboard, manmade plate, ABS plate, PVC plate, organic glass plate and solid wood;



2.Guide rail of mobile workbench adopts ball bearing differential structure with high rating accuracy;



3.Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and nondeformable performance;



4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;



5.Obliquity of principle saw blade and scoring saw blade is directly displayed by precise inclinometer.





Dimensions sliding table: 3000x360mm

Cross cut capacity: 3000mm

Width of cut between saw blade and rip fence :1250mm

Saw blade dia.: 300mm(250-350)

Height of cut dia.300mm: 80mm

Height of cut with saw blade dia.300mm at 45degree:55mm

Speed of main saw blade :4000/6000rpm

Spindle diameter :30mm

Tiling saw blade: 0-45degree

Main motor : 4kw

Scoring saw blade : 120mm

Speed of scoring saw blade: 8000rpm

Spindle of scoring saw : 20mm

Motor :0.75kw

Net weight: 1000kg

Gross weight (wooden packing case) :1050kg

Overall dimensions : 3150x3050x900mm

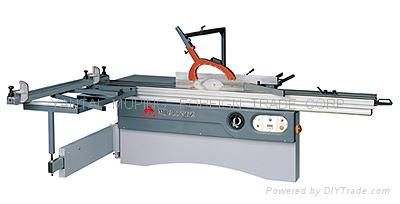

QJ6132TZ Panel Saw



Characteristics

1.Fit for processing various panel with similar rigidity, such as consistent plate, flakeboard, manmade plate, ABS plate, PVC plate, organic glass plate and solid wood;



2.Guide rail of mobile workbench adopts ball bearing differential structure with high rating accuracy;



3.Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and nondeformable performance;



4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;



5.Obliquity of principle saw blade and scoring saw blade is directly displayed by precise inclinometer.





Dimensions sliding table: 3000x360mm

Cross cut capacity: 3100mm

Width of cut between saw blade and rip fence :1250mm

Saw blade dia.: 300mm(250-350)

Height of cut dia.300mm: 80mm

Height of cut with saw blade dia.300mm at 45degree:55mm

Speed of main saw blade :4000/6000rpm

Spindle diameter :30mm

Tiling saw blade: 0-45degree

Main motor : 4kw

Scoring saw blade : 120mm

Speed of scoring saw blade: 8000rpm

Spindle of scoring saw : 20mm

Motor :0.75kw

Net weight: 1000kg

Gross weight (wooden packing case) :1050kg

Overall dimensions : 3150x3050x900mm

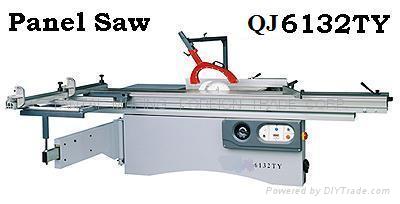

QJ6132TY Panel Saw

Characteristics



1.Fit for processing various panel with similar rigidity, such as consistent plate, flakeboard, manmade plate, ABS plate, PVC plate, organic glass plate and solid wood;



2.Guide rail of mobile workbench is made of imported chromeplated round stick with high rating accuracy;



3.Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and nondeformable performance;



4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;



4.Obliquity of principle saw blade and scoring saw blade is directly displayed by precise inclinometer.



Dimensions sliding table:3200x370mm

Cross cut capacity :3200mm

Width of cut between saw blade and rip fence : 1250mm

Saw blade dia.: 300mm(250-400)

Height of cut dia.300mm : 80mm

Height of cut with saw blade dia.300mm at 45degree: 55mm

Speed of main saw blade :4000/6000rpm

Spindle diameter :30mm

Tiling saw blade :0-45degree

Main motor : 4kw

Scoring saw blade : 120mm

Speed of scoring saw blade :8000rpm

Spindle of scoring saw: 20mm

Motor: 0.75kw

Net weight :1100kg

Gross weight (wooden packing case) :1150kg

Overall dimensions:3250x3050x900mm

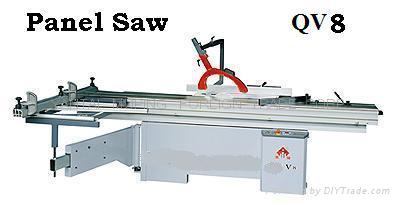

QV8 Panel Saw

Characteristics



1.Fit for processing various panel with similar rigidity, such as consistent plate, flakeboard, manmade plate, ABS plate, PVC plate, organic glass plate and solid wood;



2.Guide rail of mobile workbench is made of imported chromeplated round stick with high rating accuracy;



3.Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and nondeformable performance;



4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;



5.Obliquity and lifting of principle saw blade and scoring saw blade are controlled by electricity and displayed with accurate numbers.





Dimensions sliding table:3200x370mm

Cross cut capacity: 3200mm

Width of cut between saw blade and rip fence : 1250mm

Saw blade dia.: 300mm(250-400)

Height of cut dia.300mm :70mm

Height of cut with saw blade dia.300mm at 45degree: 55mm

Speed of main saw blade :3/4/5000rpm

Spindle diameter :30mm

Tiling saw blade: 0-45degree

Main motor :5.5kw

Scoring saw blade : 120mm

Speed of scoring saw blade : 9000rpm

Spindle of scoring saw: 20mm

Motor :0.75kw

Net weight : 1100kg

Gross weight (wooden packing case) :1150kg

Overall dimensions:3250x3100x900mm
