BJC1128 Precision Sliding Table Panel Saw


Max.moveable distance of table 2800mm
Max.working thinkness 60mm
Maim sawblade dia. 300mm
Spindle dia. 30mm
Main saw spindle speed 5400/4000/2700r/min
Main motor power 4KW
Scoring saw spindle speed 9000r/min
Scoring saw spindle dia. 20mm
Scoring saw blade dia. 120mm
Scoring saw motor power 0.75KW
Overall dimensions 2800×2550×963mm
Net.weight 660kg

BJF135E Edge Banding Machine


Banding material thickness 0.45-3mm
Banding height 15-50mm
Min.Banding radius 20mm
Banding materials PVC带、木条、三聚青氨
Heater 1.5KW/220V
Motor power 180W/380V
Feeding speed 3.3,16.5m/min无级变速
Air pressure 0.6MPa
Overall dimensions 1980×1390×1020mm
Net.weight 320kg

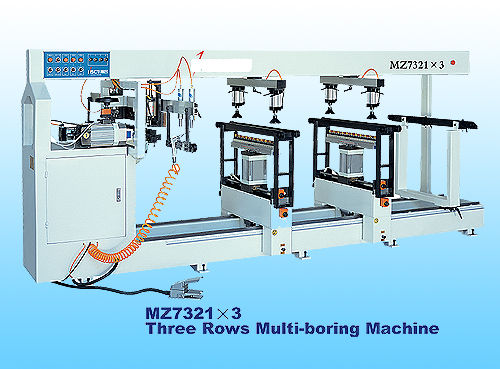

MZ7321*3 Three-row Multiple Spindle Boring Machine


一、Use and application range
  This machine is mostly applied in mortice processing of log, flakeboard, medium-dense fiber plate and other wood products. Through adjustment operation for only one time, it is able to work out the precision processing of 65 holes in no more than three rows simultaneously and it can also produce and process multi-row and poriferous workpieces of same type in batches.
  This machine adopts semi-automatic operation, full-pneumatic mount workpiece and full-automatic feeding tool in working process, which facilitate multi-direction processing of complicated workpieces.
It is particularly suitable to highly efficient production and processing of dense multi-row poriferous wood workpieces in large scale and batches, requiring high technics.
  This machine features reasonable structure and design, advanced technics, facile operation and adjustment, stable and reliable run, high working efficiency, precise processing and so on. It is one of the indispensable equipments in the operation of carpentry.
二、Major technical parameters Min. auger spindle space length 32mm
Max. drill depth 50mm
Auger spindle number (place) Vertical 2×21 places; horizontal 21 places
Max. dimension of workpiece 1450mm×800mm
Electric power 1.5kw×3
Auger spindle rotate speed 2840rpm
Compressed air pressure 0.6MPa
Overall dimension of machine 2350×2500×1550(mm)
Machine net weight Approx. 1500kg


Any change of the above content will not be noticed.

MODEL NAME REMARKS
MZ7365 Woodworking three-line boring machine Computer-control for drills split
MZ7321B Woodworking three-line boring machine Drill modules


BJC1132 Precision Sliding Table Panel Saw


Max.moveable distance of table 3200mm
Max.working thinkness 60mm
Maim sawblade dia. 300mm
Spindle dia. 30mm
Main saw spindle speed 5400/4000/2700r/min
Main motor power 4KW
Scoring saw spindle speed 9000r/min
Scoring saw spindle dia. 20mm
Scoring saw blade dia. 120mm
Scoring saw motor power 0.75KW
Max.saw blade tilting angle 45°
Overall dimensions 3200×2615×963mm
Net.weight 700kg

BJF415 Edge Cutting Miller


Cutting height 10-50mm
Milling speed 11300r/min
Saw spindle speed 7200r/min
Motor power 0.55KW×2
Voltage 380V
Overall dimensions 1000×775×955mm
Net.weight 260kg

MZ7221C Tow-row Multiple Spindle Boring Machine
一、Purpose and scope of application
  This machine tool is fit for mortise processing of solid board, planing board, medium-density fiberboard. This machine is high in efficiency, and easy in operation, and precise in processing. It can drill vertically and horizontally. so it is a necessary tool for carpentry industry.


Max. width 750mm
Max. depth 50mm
distance of drill spindles 32mm
Number of drill head 2×21digit
Power of single electromotor 1.5kw
Overall power 3kw
rotating speed of drill axle 2840rpm
Pressure of compressed air 0.6MPa

We will not give you a second notification for any change in the conten.

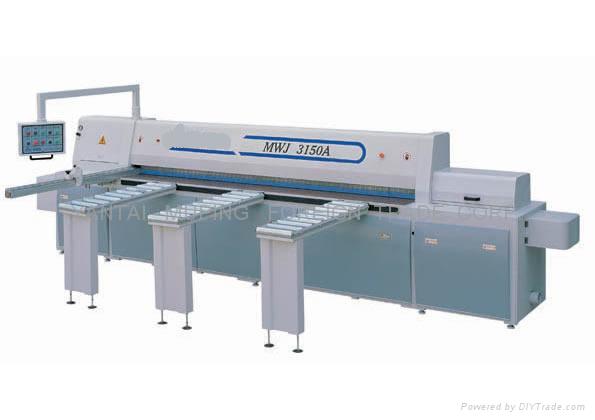

MWJ3150precision reciprocating saw

Machine character
   This machine applies to processing manual board. Besides large sawing thickness and assistant worktables equipped in front and behind, it also adopts two controlling programs, one is the whole-course sawing program and the other is the automatic-course sawing program, by which the automation of pressing material, sawing and backhaul can be realized. Furthermore, there is a removing dust equipment in the machine. This machine can greatly improve producing efficiency, reduce a great deal physical force, save energy sources, and decrease the pollution, thus is absolutely necessary for large and medium-size corporations manufacturing office equipments and furniture.
Main index of the machine:


Machine models MWJ2500A MWJ3150A
Max. sawing length (mm) 2500 3150
Max. sawing thickness (mm) 76 76
Sawing motor power (mm) 7.5 7.5
Out diameter of main saw blade (mm) 350 350
Inside diameter of main saw blade (mm) 30 30
Revolving speed of main saw (r/min) 4300 4300
Out diameter of secondary saw blade (mm) 170 170
Inside diameter of secondary saw blade (mm) 30 30
Revolving speed of secondary saw (r/min) 6500 6500
Sawing speed (m/min) ≤17 ≤17
Return speed (m/min) ≤35 ≤35
Air pressure (Mpa) 0.6-0.7 0.6-0.7
Overall dimensions (mm) 5510×4370×1390 5998×4370×1390
Weight (kg) 2600 3000


MODEL NAME REMARKS
MWJ3200 To-and-fro cutting block Computer-control for automatic feed
MWJ3200 To-and-fro cutting block
MWJ2500 To-and-fro cutting block


MJ3200 PRECISION BOARD-CUTTING SAW

Machine tool ' s characteristic
The machine is used to cut the wood, artificial board and aluminium alloy. Movable has advanced difference moving rolling bead straight track, has the excellence of stabilization, flexible characterize. Even the big workpiece can also move easily, and able to be fastened at random place. Double saw make sure that the section is smooth. The group of the saws can switch from 45o to 90o. It has the good qualities of high efficiency, high precise and easy operation, so is the important tool for cosmically producing. artificial

Main technological index:


Board length 3200mm
The size of main saw Ø300×30mm
Size of the saw for drawing lines Ø120×20mm
Main saw rotation speed 5800r/min
Rotatin speed of the saw for drawing lines 7700r/min
Gross power 3.75kw

Net mass 800kg



MODEL NAME REMARKS
MJ3200 Lineal guide-rail saw


MZ7121B Single Row Multiple Spindle Boring Machine
一、purpose and scope of application
   This drill press is a multi-pore processing machine, able to turn from zero to 90 degrees. According to the size of boring hole, and hardness of board, the runoff of air current can be regulated accordingly to choose proper speed of supply. This machine features flexible operation, multi-purpose, high efficiency and wide size ranges of processing.


二、Major technical parameters: Max. processing thickness 80mm
Max. drilling diameter 15mm
Max.drilling depth 60mm
Max.drilling depth 32mm
Number of major axles 21
Speed of main axle 2840r/min
power of electric motorl 1.5kw
pressure of compressed air 0.6Mpa
size of table 2200×730mm
overall dimensions 2380×1150×1220mm


We will not give you a second notification for any change in the conten.

MODEL NAME REMARKS
XFJ514A Double- sizing manual edge banding machine Transducer timing


Width for workpiece: 15-50mm
Angle for tilting working table:60degree,40degree
Thickness of edge-banding: 0.3-3mm
Min-radius of curved edging: 20mm
Edging feeding speed:15m/min
Max.allowable cutting width:50mm
Heating power: 1.2kw
Motor power: 1.2kw
weight: 280kgs
outline measure: 1600x965x1150mm
