Four sides Woodworking Planer Machine,MB-5013H,MB-5016H

Four sides Woodworking Planer Machine,MB-5013H,MB-5016H

Model No.︰MB-5013H/5016H

Brand Name︰SHOOT

Country of Origin︰China

Unit Price︰-

Minimum Order︰-

Inquire Now

Product Description

Four-sides Woodworking Thicknesser Machine
Feature
The body is with heavy-duty steel and with special heat treatment process, better stability.
Stable high speed feeding system, 20 m / min. and with speed adjustment 5-20m, greaty improves the production efficiency.
All the spindle are with seperater motors, makes the cutting strong.
The work table is with special treatment process, better durability and no deformation.
Feeding wheel, using cylinder compression type, can be individually adjusted to its pressure, which makes feeding more smoothly.
High speed spindle equipped with SKF high-speed bearings, more smooth cutting.
Spindle adjustment is concentrated in the front of the machine, more humane strcture.
The work table is with active feeders, feeding more smoothly.
All the parts are made with fine processing of high-precision CNC Center, and this ensures stable and efficient operation.
The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
Model MB-5013H
Processing width 15--130mm
Processing thickness 8--110mm
Feeding speed 5--20m/min
Feeding power 2.2kw
Knife speed 6800r/min
First bottom power 2.2kw
Left cutter power 3kw
Right cutter power 3kw
Rirst top power 4kw
Second top power 4kw
Beam lifting power 0.37kw
Total power consumption 18.77kw
Max. cutting round Φ170mm





Four-sides Woodworking Planer Machine
Feature
The body is with heavy-duty steel and with special heat treatment process, better stability.
Stable high speed feeding system, 20 m / min. and with speed adjustment 5-20m, greaty improves the production efficiency.
All the spindle are with seperater motors, makes the cutting strong.
The work table is with special treatment process, better durability and no deformation.
Feeding wheel, using cylinder compression type, can be individually adjusted to its pressure, which makes feeding more smoothly.
High speed spindle equipped with SKF high-speed bearings, more smooth cutting.
Spindle adjustment is concentrated in the front of the machine, more humane strcture.
The work table is with active feeders, feeding more smoothly.
All the parts are made with fine processing of high-precision CNC Center, and this ensures stable and efficient operation.
The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
Model MB-5016H
Processing width 18--160mm
Processing thickness 8--110mm
Feeding speed 5--20m/min
Feeding power 2.2kw
Knife speed 6000r/min
First bottom power 3kw
Left cutter power 3kw
Right cutter power 3kw
Rirst top power 4kw
Second top power 4kw
Beam lifting power 0.37kw
Total power consumption 19.57kw
Max. cutting round Φ170mm



Four-sides Woodworking Thicknesser
Feature
The body is with heavy-duty steel and with special heat treatment process, better stability.
Stable high speed feeding system, 20 m / min. and with speed adjustment 5-20m, greaty improves the production efficiency.
All the spindle are with seperater motors, makes the cutting strong.
The work table is with special treatment process, better durability and no deformation.
Feeding wheel, using cylinder compression type, can be individually adjusted to its pressure, which makes feeding more smoothly.
High speed spindle equipped with SKF high-speed bearings, more smooth cutting.
Spindle adjustment is concentrated in the front of the machine, more humane strcture.
The work table is with active feeders, feeding more smoothly.
All the parts are made with fine processing of high-precision CNC Center, and this ensures stable and efficient operation.
The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
Model MB-5016E
Processing width 18--160mm
Processing thickness 8--110mm
Feeding speed 5--20m/min
Knife speed 6000r/min
Knife diameter prst down knife 100-135mm
Left right knife 100-160mm
Frist up knife 100-160mm
Sec. down knife 100-160mm
First down knife 3kw
Left right knife 3/3kw
Frist up knife 4kw
Sec. down knife 3kw
Feeding power 2.2kw
Beam lifting power 0.37kw
Total power consumption 18.57kw
Max. turning circle 115mm

Export Markets︰ Europe,Asia,America,Africa, South-America,North-America

Payment Details︰ T/T,L/C at sight, Western Union

Ship Date︰ 20 days after receive payment

Standard Met︰ CE

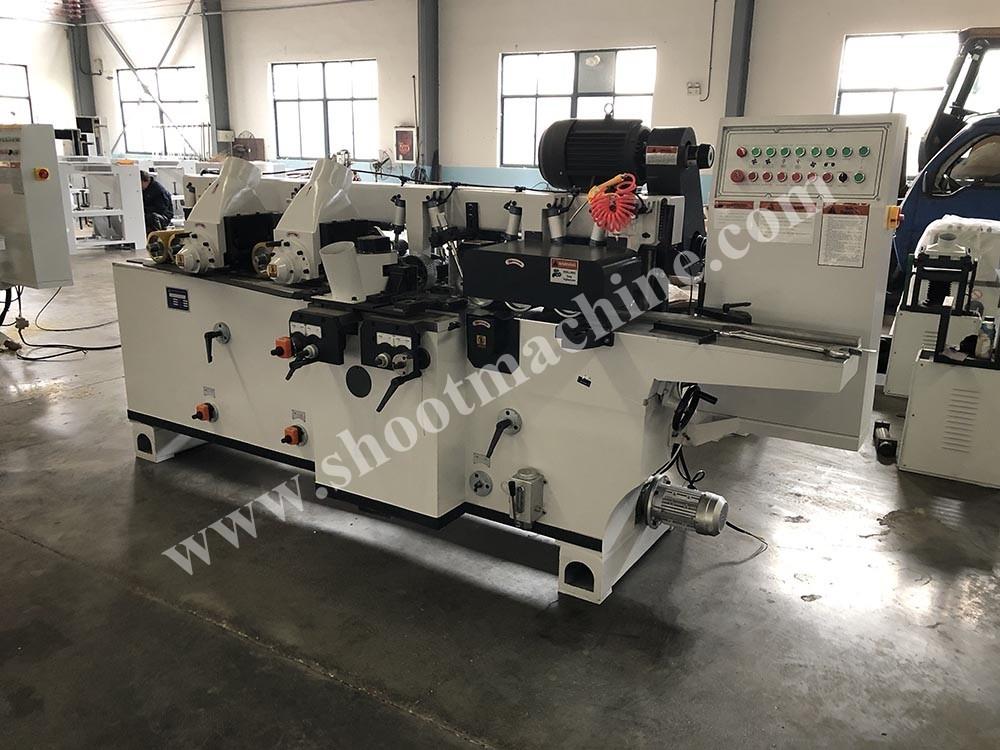

Product Image
